Updated docum of PushSecret (#2391)

* Updated docum of PushSecret

Closes #2242

Signed-off-by: Sebastián Gómez <sebastiangomezcorrea@gmail.com>

* Updated image and completed diagram file

Signed-off-by: Sebastián Gómez <sebastiangomezcorrea@gmail.com>

---------

Signed-off-by: Sebastián Gómez <sebastiangomezcorrea@gmail.com>
Sebastián Gómez 2 years ago
parent
commit
f5a4107b3f

+ 6 - 1
docs/api/pushsecret.md

@@ -1,4 +1,9 @@
-The `PushSecret` is namespaced and specifies how to push secrets to secret stores.

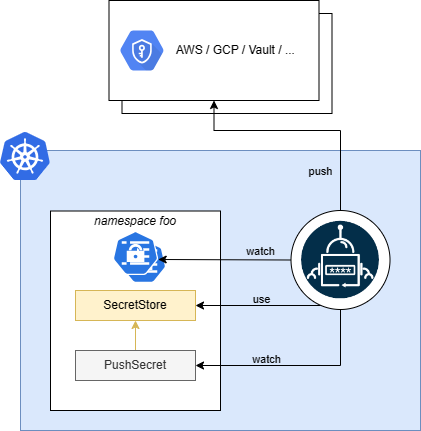

+![PushSecret](../pictures/diagrams-pushsecret-basic.png)
+
+The `PushSecret` is namespaced and it describes what data should be pushed to the secret provider.
+
+* tells the operator what secrets should be pushed by using `spec.selector`.
+* you can specify what secret keys should be pushed by using `spec.data`

 ``` yaml
 {% include 'full-pushsecret.yaml' %}

+ 18 - 0
docs/guides/pushsecrets.md

@@ -0,0 +1,18 @@
+
+Contrary to what `ExternalSecret` does by pulling secrets from secret providers and creating `kind=Secret` in your cluster, `PushSecret` reads a local `kind=Secret` and pushes its content to a secret provider.
+
+If there's already a secret in the secrets provided with the intended name of the secret to be created by the `PushSecret` you'll see the `PushSecret` in Error state, and when described you'll see a message saying `secret not managed by external-secrets`.
+
+By default, the secret created in the secret provided will not be deleted even after deleting the `PushSecret`, unless you set `spec.deletionPolicy` to Delete.
+
+``` yaml
+{% include 'full-pushsecret.yaml' %}
+```
+
+## Backup use case
+
+An interesting use case for `kind=PushSecret` is backing up your current secret from one provider to another one.
+
+Imagine you have your secrets in GCP and you want to back them up in Azure Key Vault. You would then create a `SecretStore` for each provider, and an `ExternalSecret` to pull the secrets from GCP. This will generetae `kind=Secret` in your cluster that you can use as the source of a `PushSecret` configured with the Azure `SecretStore`.
+
+![PushSecretBackup](../pictures/diagrams-pushsecret-backup.png)

BIN
docs/pictures/diagrams-pushsecret-backup.png


BIN
docs/pictures/diagrams-pushsecret-basic.png


File diff suppressed because it is too large
+ 2299 - 1
docs/pictures/diagrams.drawio


+ 1 - 0
docs/snippets/full-pushsecret.yaml

@@ -4,6 +4,7 @@ metadata:
   name: pushsecret-example # Customisable
   namespace: default # Same of the SecretStores
 spec:
+  deletionPolicy: Delete # the provider' secret will be deleted if the PushSecret is deleted
   refreshInterval: 10s # Refresh interval for which push secret will reconcile
   secretStoreRefs: # A list of secret stores to push secrets to
     - name: aws-parameterstore
